OEB5/6 Double Isolation Barrier System

Double Isolation Barrier via Liner: The Optimal Solution for High-Containment Transfers For the safe and efficient transfer of active products from an isolation chamber, a double isolation barrier via liner is the best solution, ensuring OEB5 to OEB6 containment performance. With an extensive range of liner products, CSV Containment provides customized coaxial containment solutions to meet the highest safety standards.

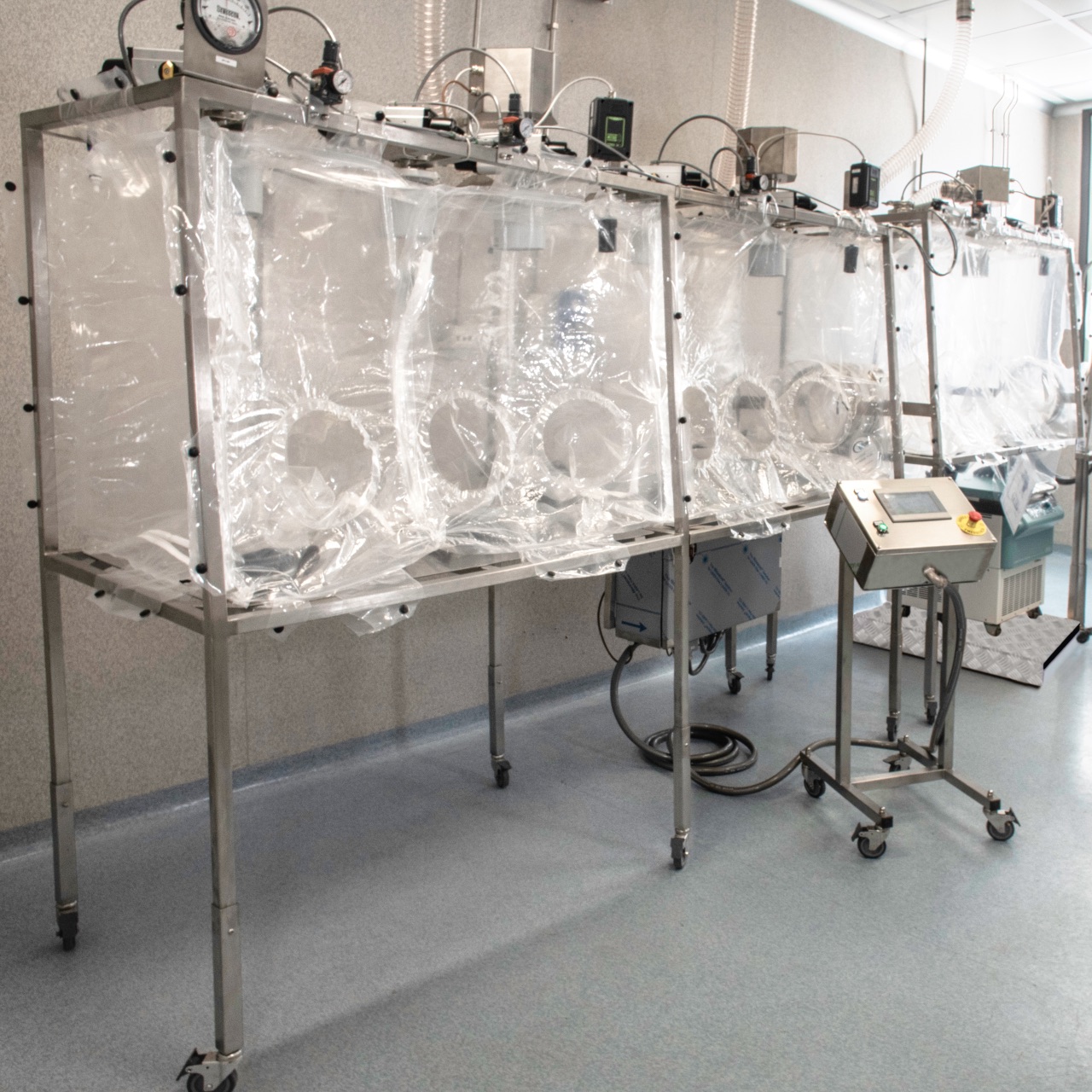

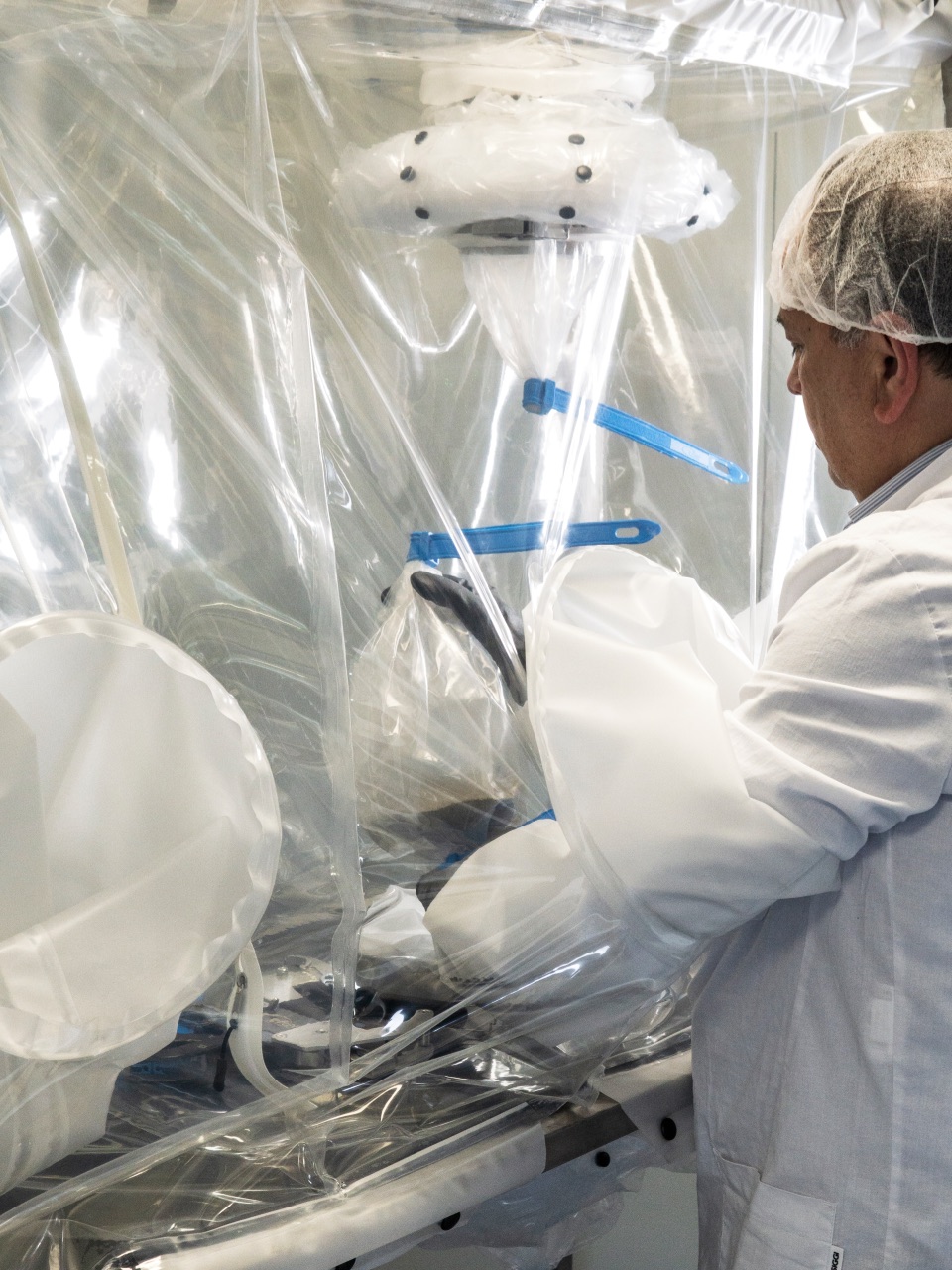

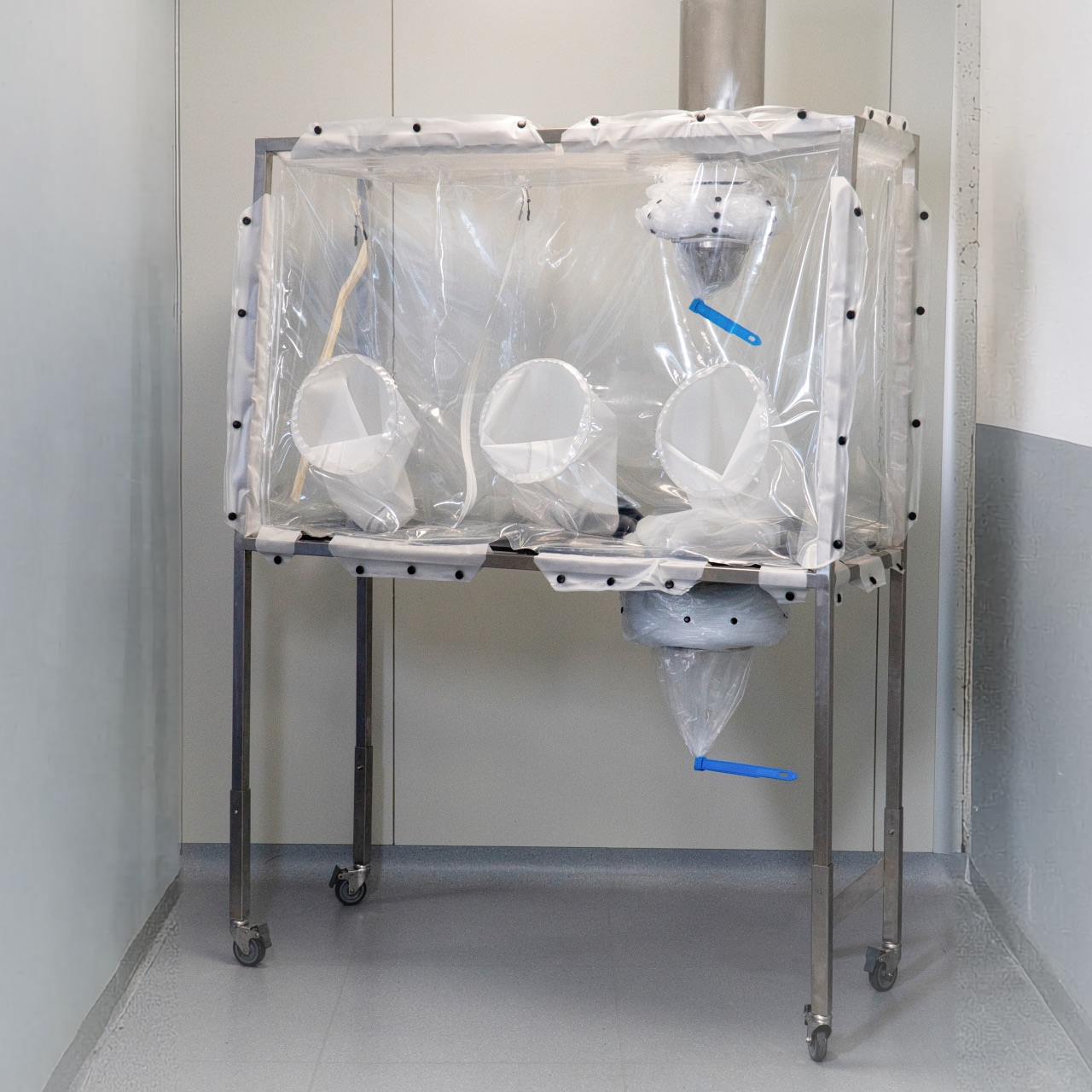

How the Double Isolation Barrier Works In a double isolation barrier system, both rigid or flexible chambers utilize a first liner that is securely separated inside the chamber. This first liner is then transferred to the outside through a second liner, effectively creating a double isolation barrier that enhances safety and containment.

Typical Application: Safe Transfer of Active Products from an Isolation Chamber Transferring highly active substances requires a level of safety that surpasses traditional solutions. Mechanical separation systems typically achieve only OEB4 containment, while heat sealing liners, though an alternative, presents operational challenges, particularly in electrically rated environments where explosion-proof standards are required.

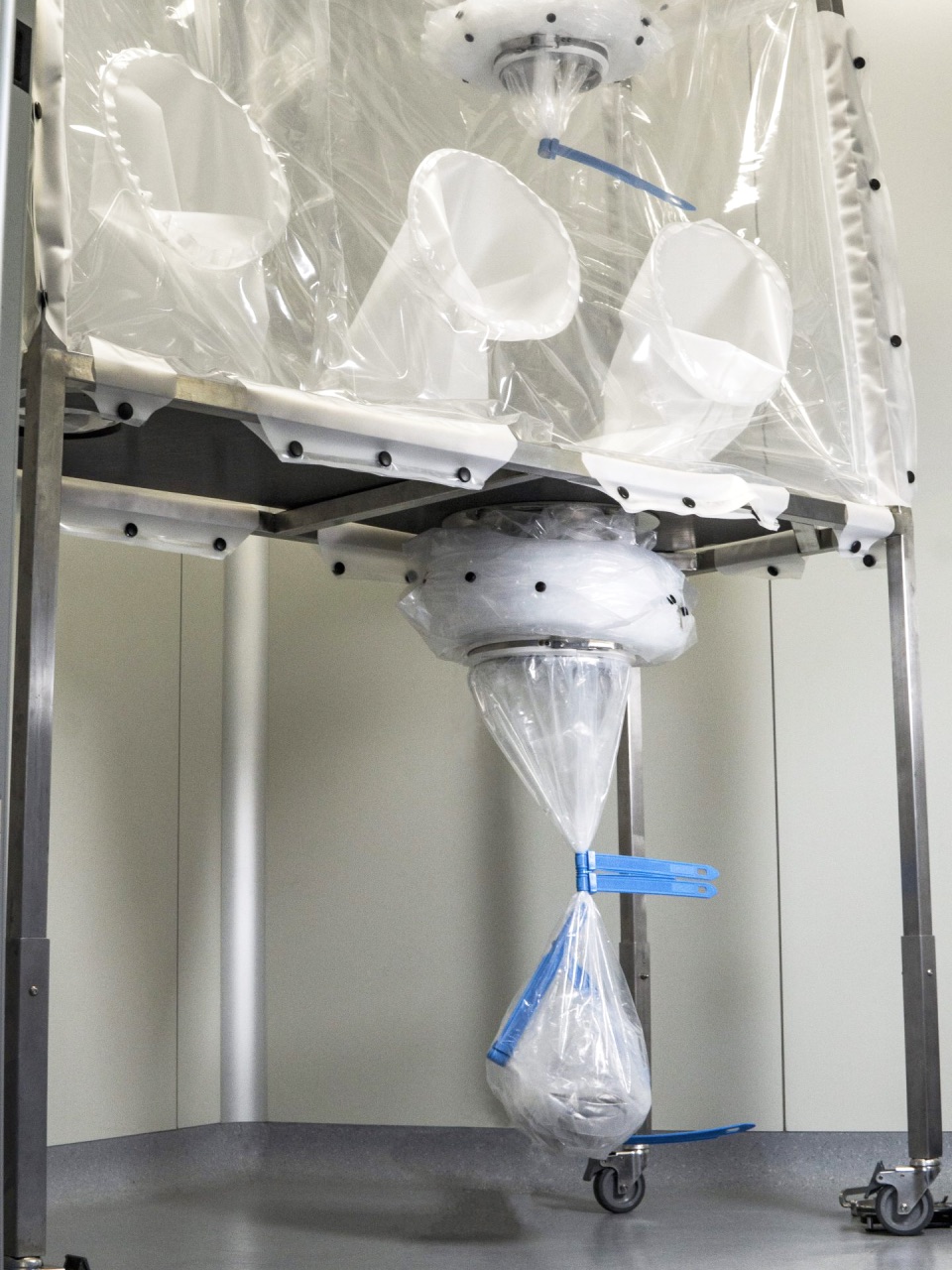

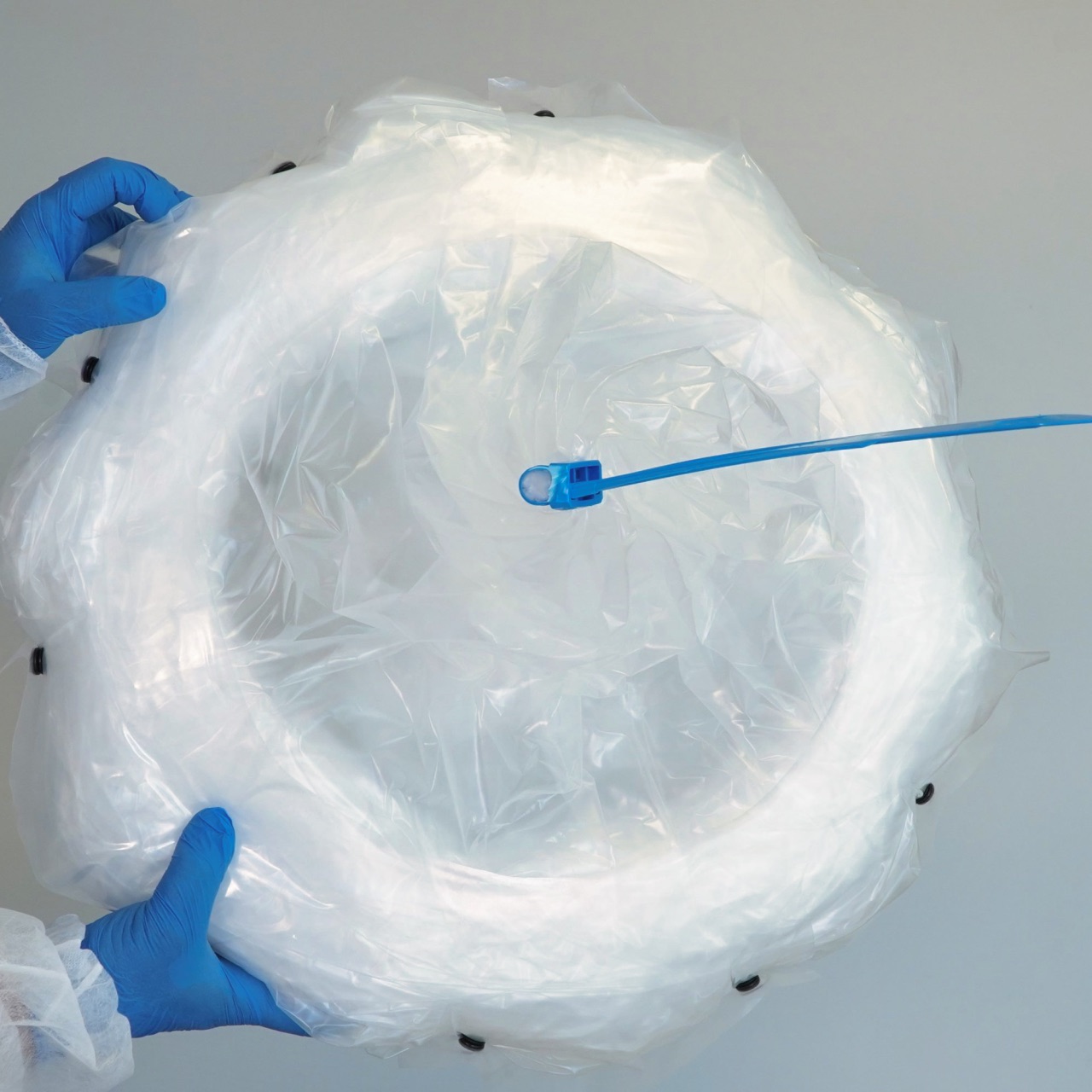

To achieve an OEB5 & 6 containment grade, the preferred approach is double isolation using a coaxial liner system. This method ensures: 1: The first liner remains inside the chamber and 2: The second liner, located outside the chamber, receives the first liner for safe disposal or processing.

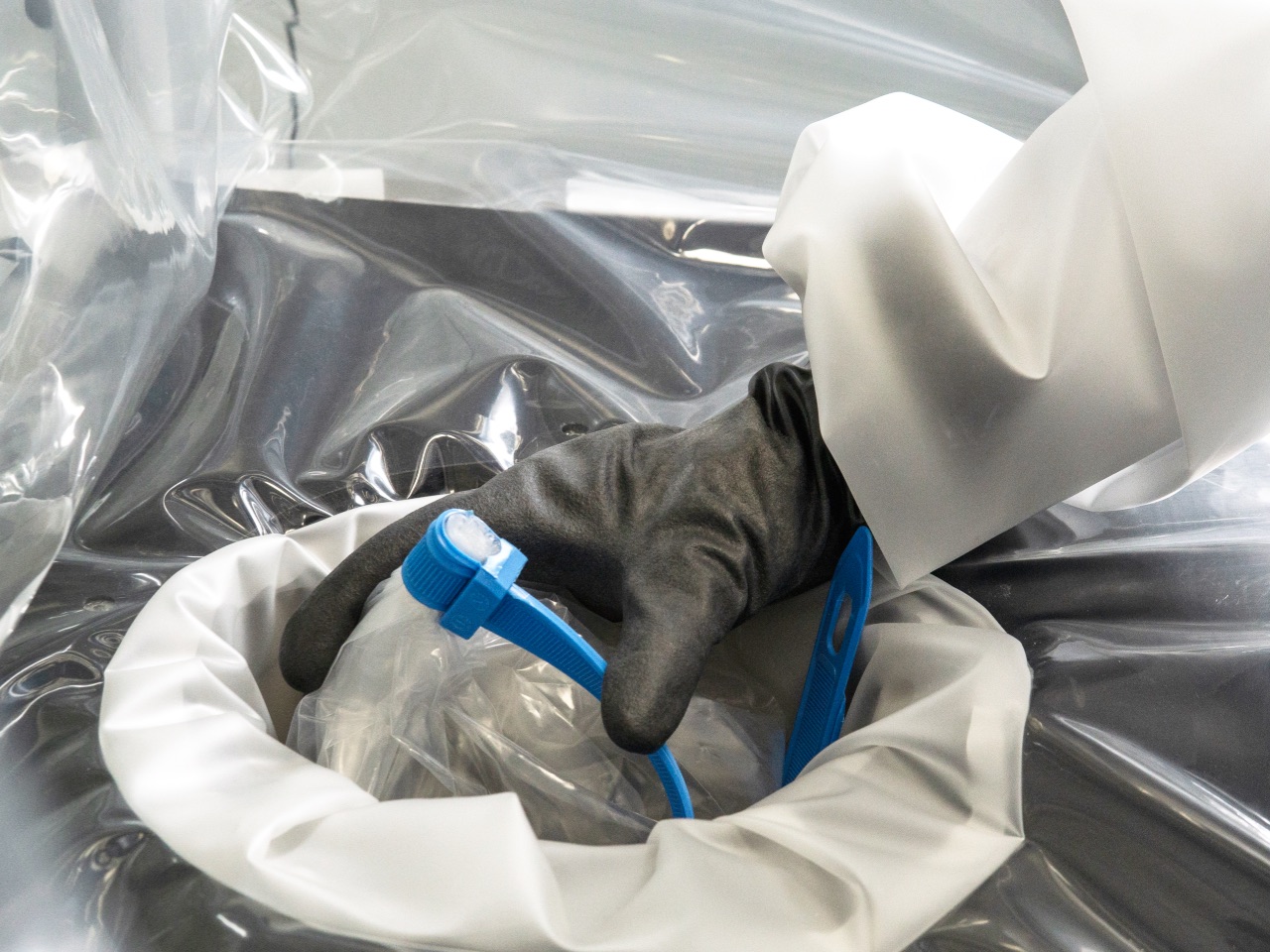

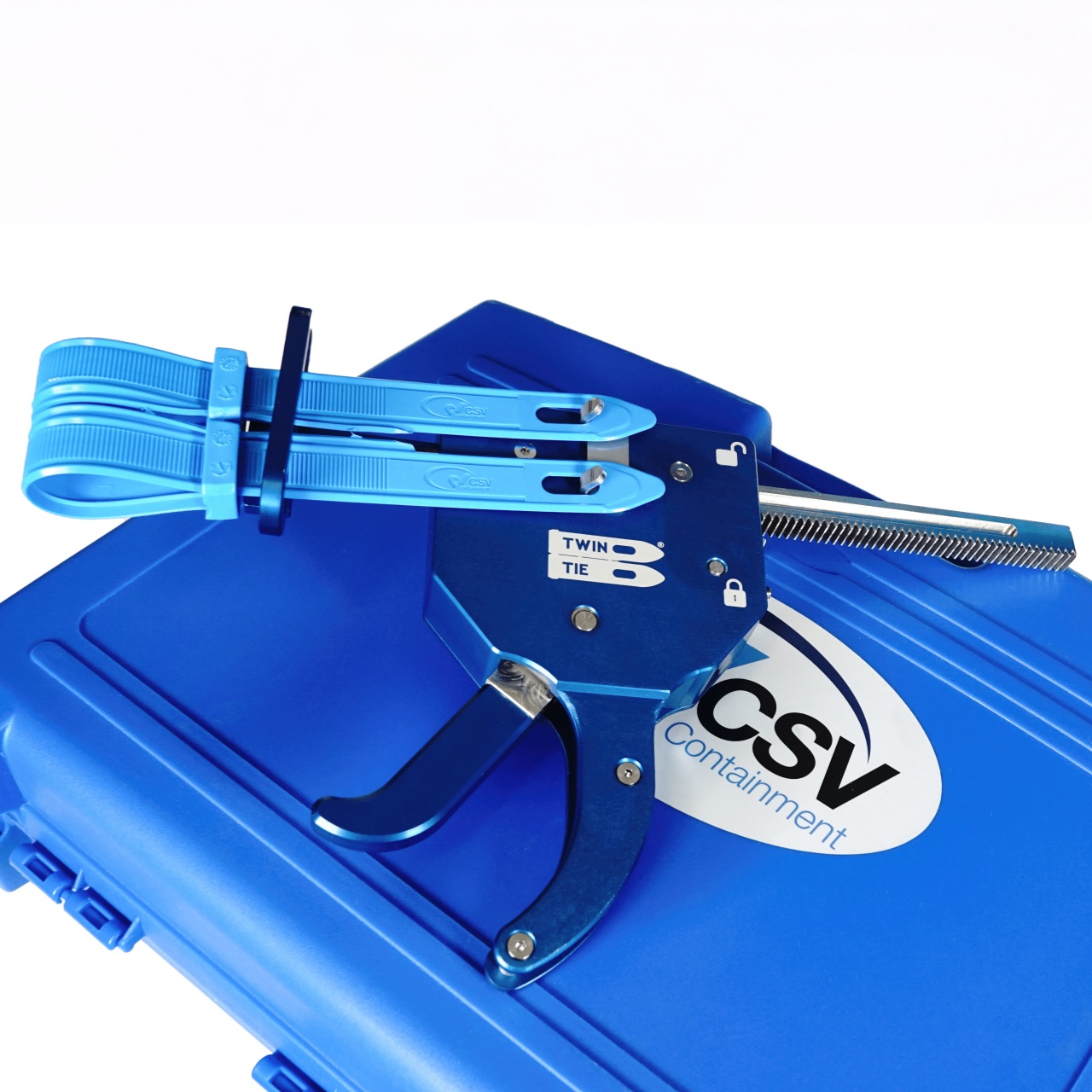

To achieve this high level of isolation, CSV Containment has developed Twin Tie®, a proprietary separation system designed for high containment. Unlike traditional crimping kits and safety seals, Twin Tie® is user-friendly, adaptable to various liner sizes, and ensures secure separation.
