Instant Benchtop Isolator

The Instant Benchtop Isolator is the perfect solution in many situations, including quality control, laboratory testing and IPC. The Instant Benchtop Isolator was designed and manufactured as a single-use, "pop-up" version of its glove bags, in kit form, that can be easily transported and is about the size of a golf bag.

Quick and easy setup allows material to be safely handled within a chamber in just 5 minutes. The strong, lightweight acrylic plastic tubes, which are fitted with soft universal quick couplings, provide a solid frame for the structure to which the disposable isolator is mounted. The disposable glove bags can be customized according to customer requirements and are available in polyurethane (PU) and low-density polyethylene (LDPE). Polyurethane offers exceptional visibility, while LDPE provides greater versatility and integrated sleeves and gloves, allowing for cost savings.

The structure of the isolator frame is the same regardless of which type is assembled, and can be easily moved and reused.

The lightweight LDPE model is ideal in situations where there is frequent isolator replacement, thanks to its use of practical Velcro loops. The polyurethane version is equipped with matte-coloured sleeves in white and special canisters that connect the butyl gloves. It also has a large gas-tight hinge that guarantees total access to the insulator. The PU disposable is secured to the structure by means of practical snap fasteners for quick installation. Both of the Instant Benchtop Isolators have filter discs on top, enclosed in a welded sleeve. These can only be opened at the time of disassembly to operate the filtered vent when compressing and collapsing the glove bag.

The Instant Benchtop Isolator structural frame features:

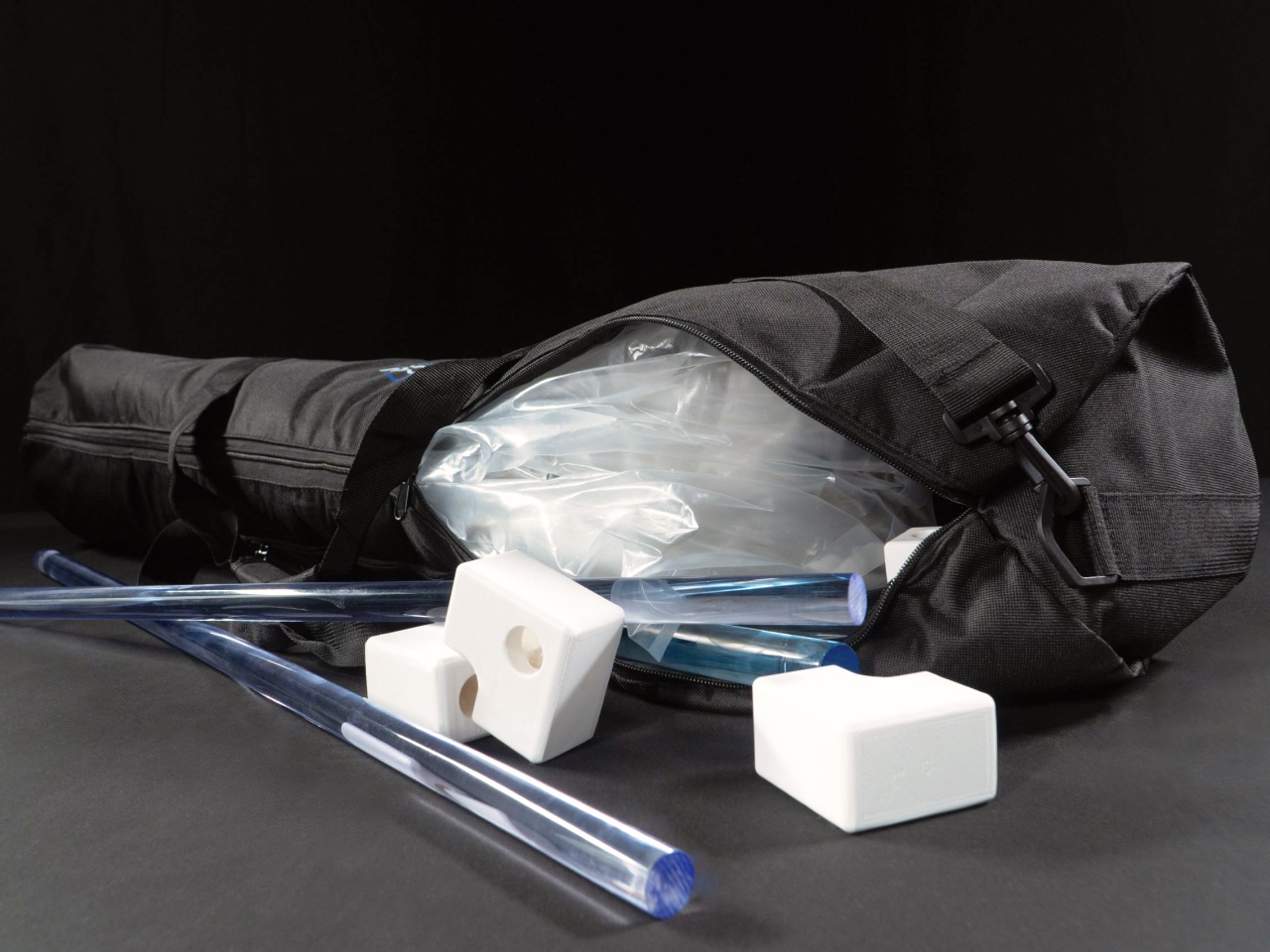

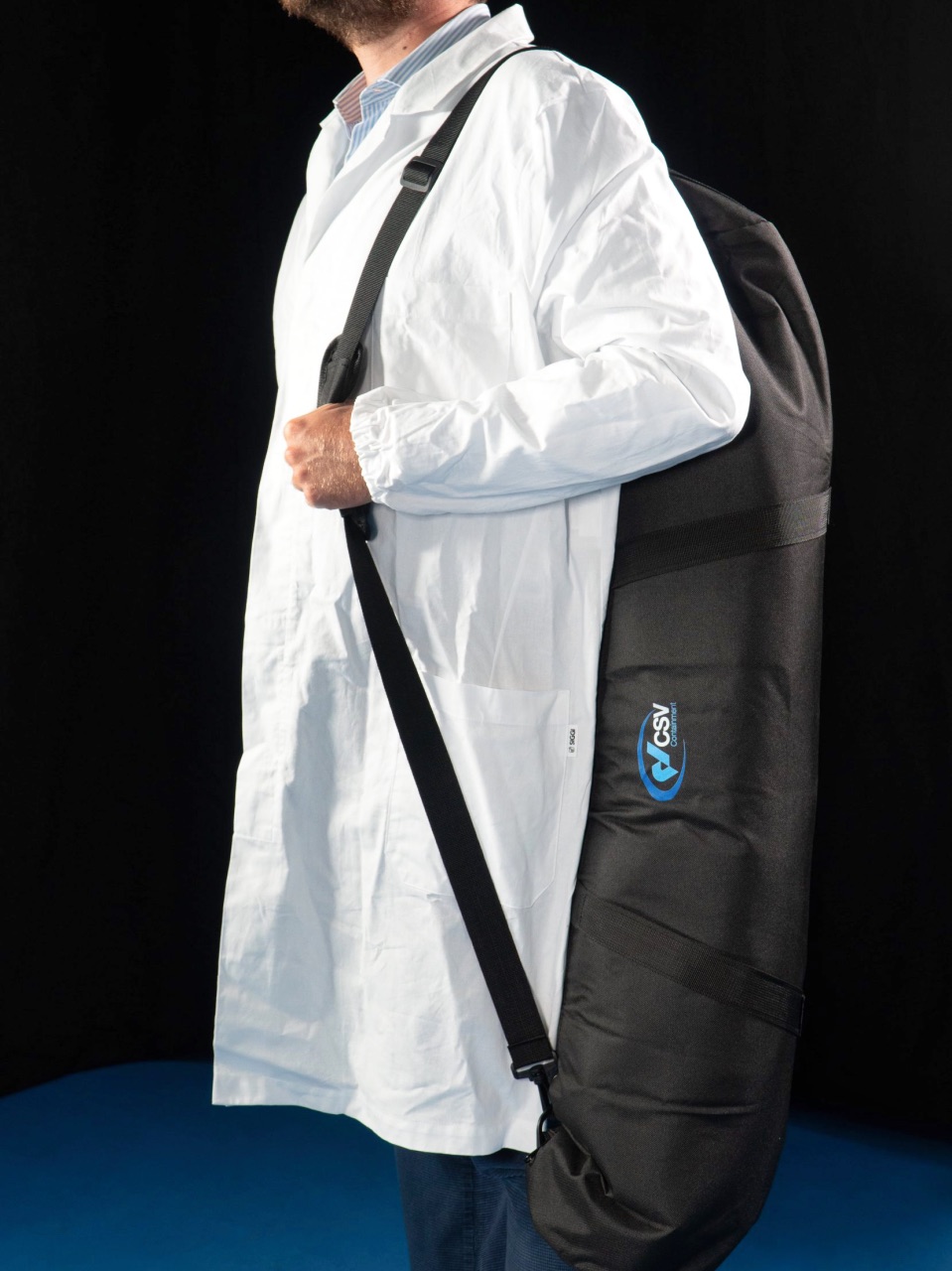

• Travel stand kit in a shoulder bag.
• Lightweight, 20 mm diameter acrylic plastic tubes.
• Soft plastic quick-release couplers.
• Suitable for mounting on any desk, workbench or laboratory bench.
• Standard dimensions: height 700 mm, width 900 mm, depth 600 mm.
• Other dimensions are available on request.

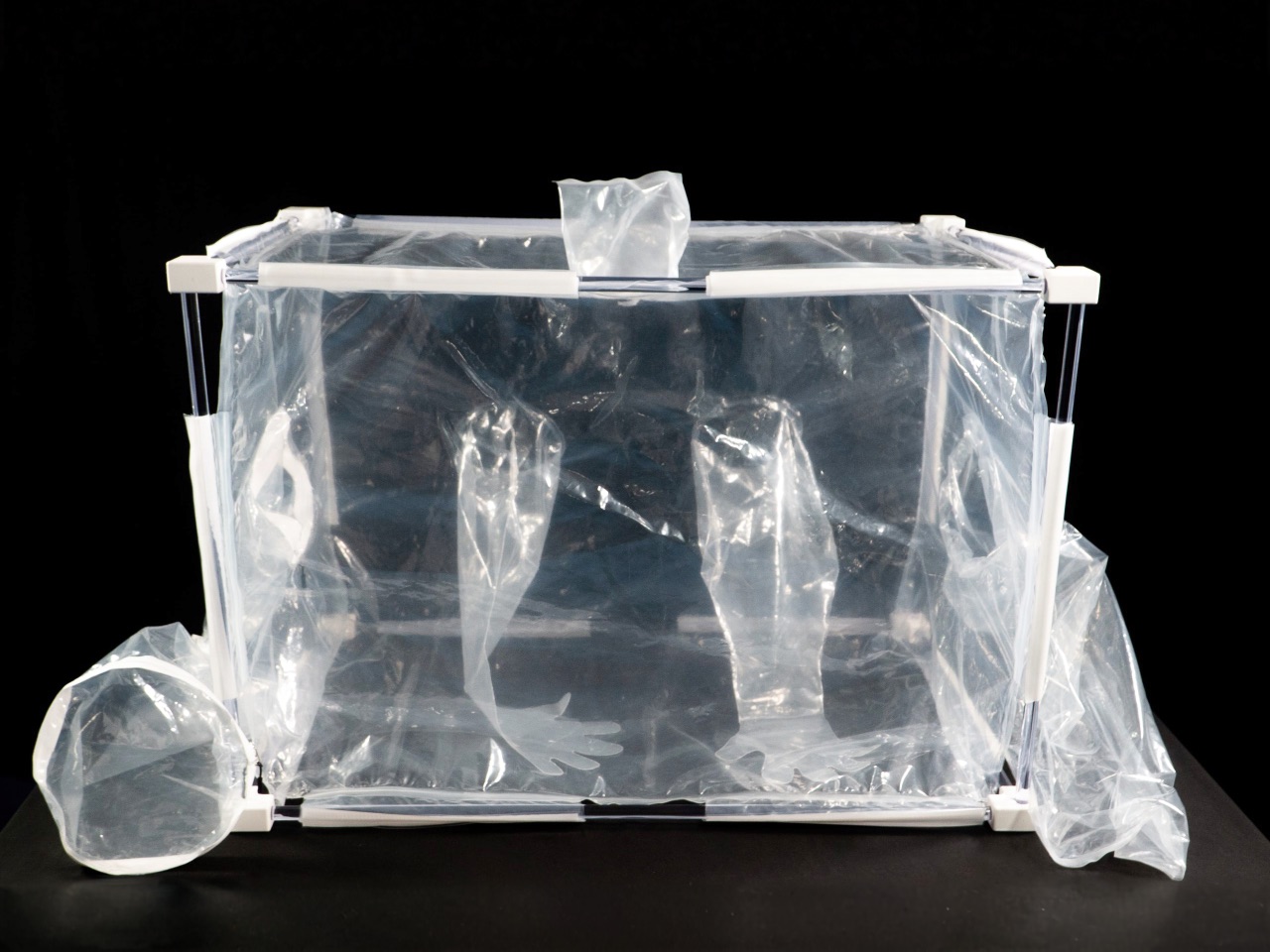

PU Isolator features:

• Transparent dissipative material with high mechanical strength and compliance with PE & USP paragraphs for contact with pharmaceutical products.
• Supplies traceable to production batch and provided with material certificate.
• Glove bag equipped with two butyl gloves and white matt PU sleeves.

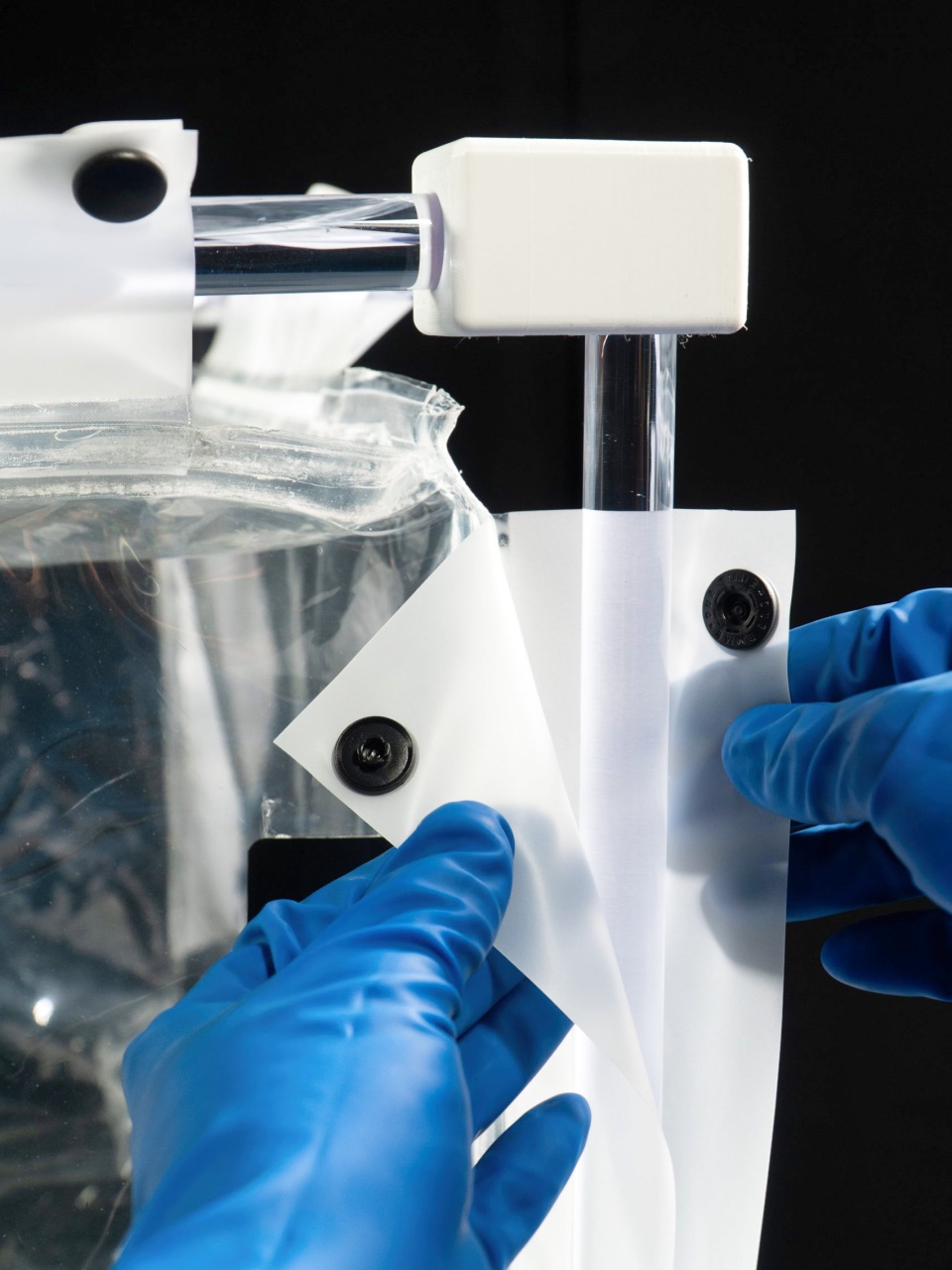

• Loops equipped with press studs.
• Bag out sleeve 270mm welded on one side (diameters available on request: 200mm and 350mm) standard length 1m (other sizes on request).

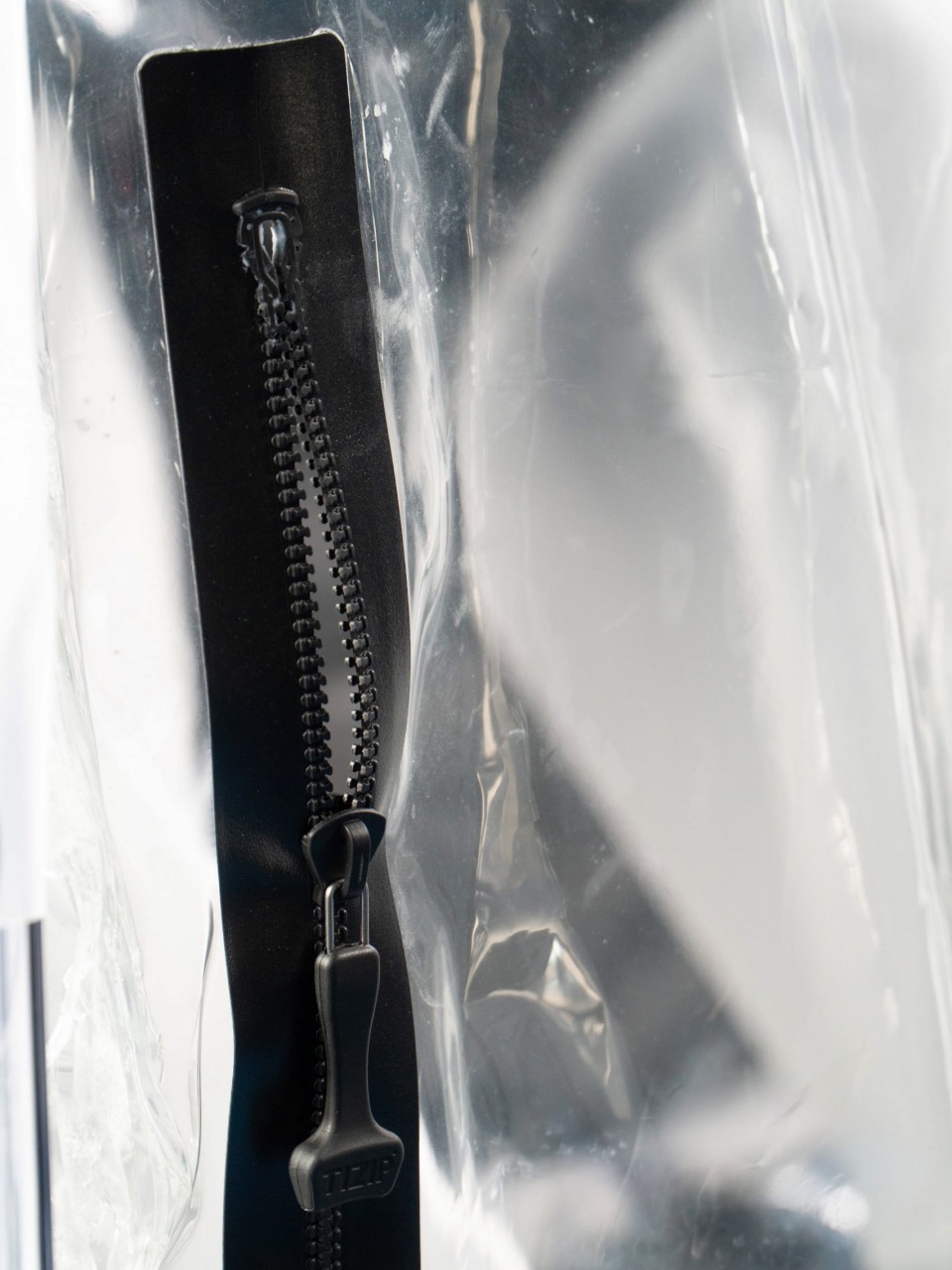

• Large gas-tight zip on the back of the isolator useful for pre-loading the chamber.
• Particulate filter on top.

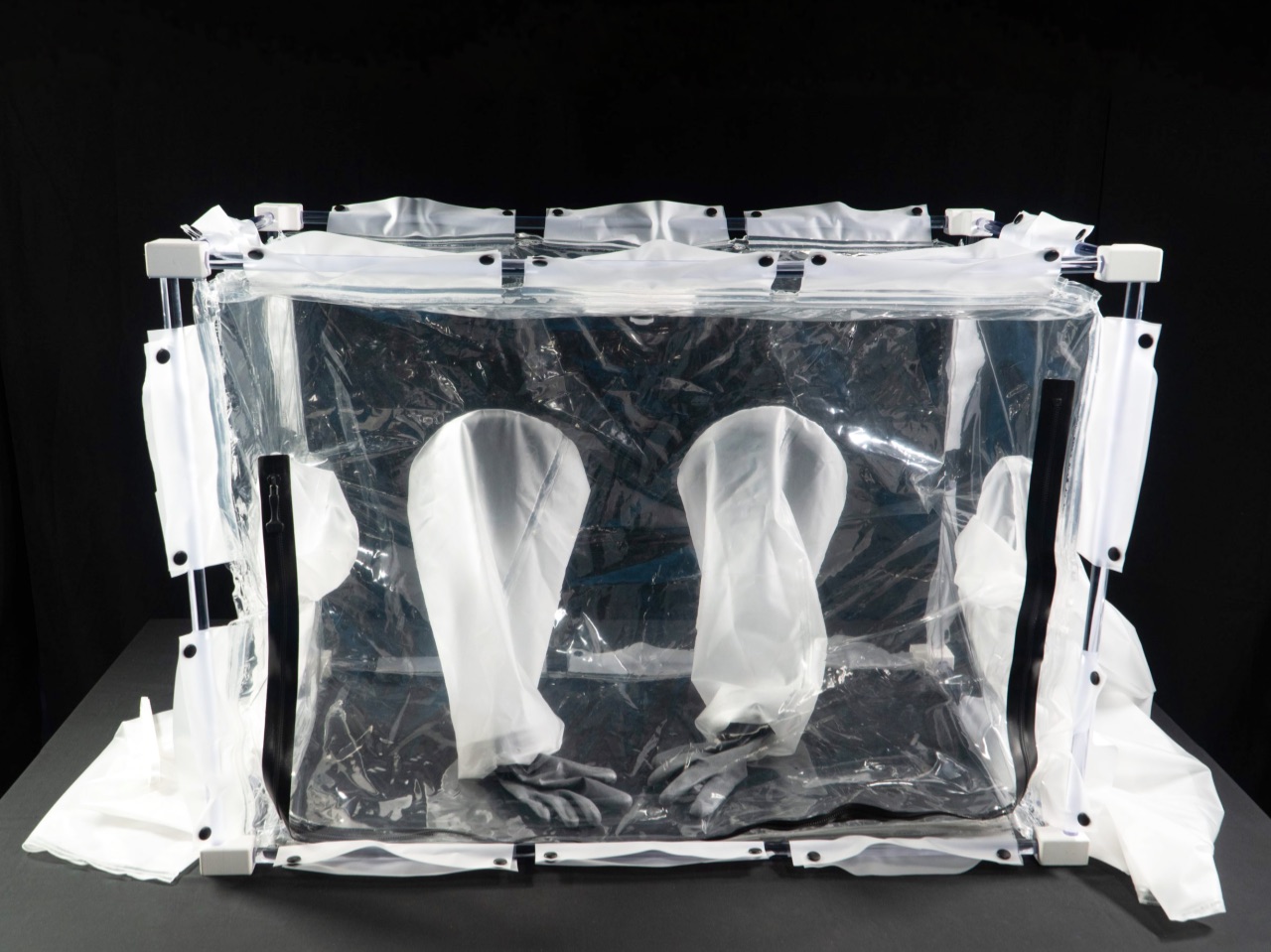

LDPE Isolator features:

• Transparent, dissipative material that is also resistant to solvents and acids, and can be washed with solvents.
• Film with PE and USP compliance for contact with pharmaceutical products.
• Traceability to production batch and material certificate provided.
• A dust-tight zipped version is available for devices or instruments that are too large to be transferred using the bag-in sleeve.
• Glove bag made from full LDPE with two integrated gloves.

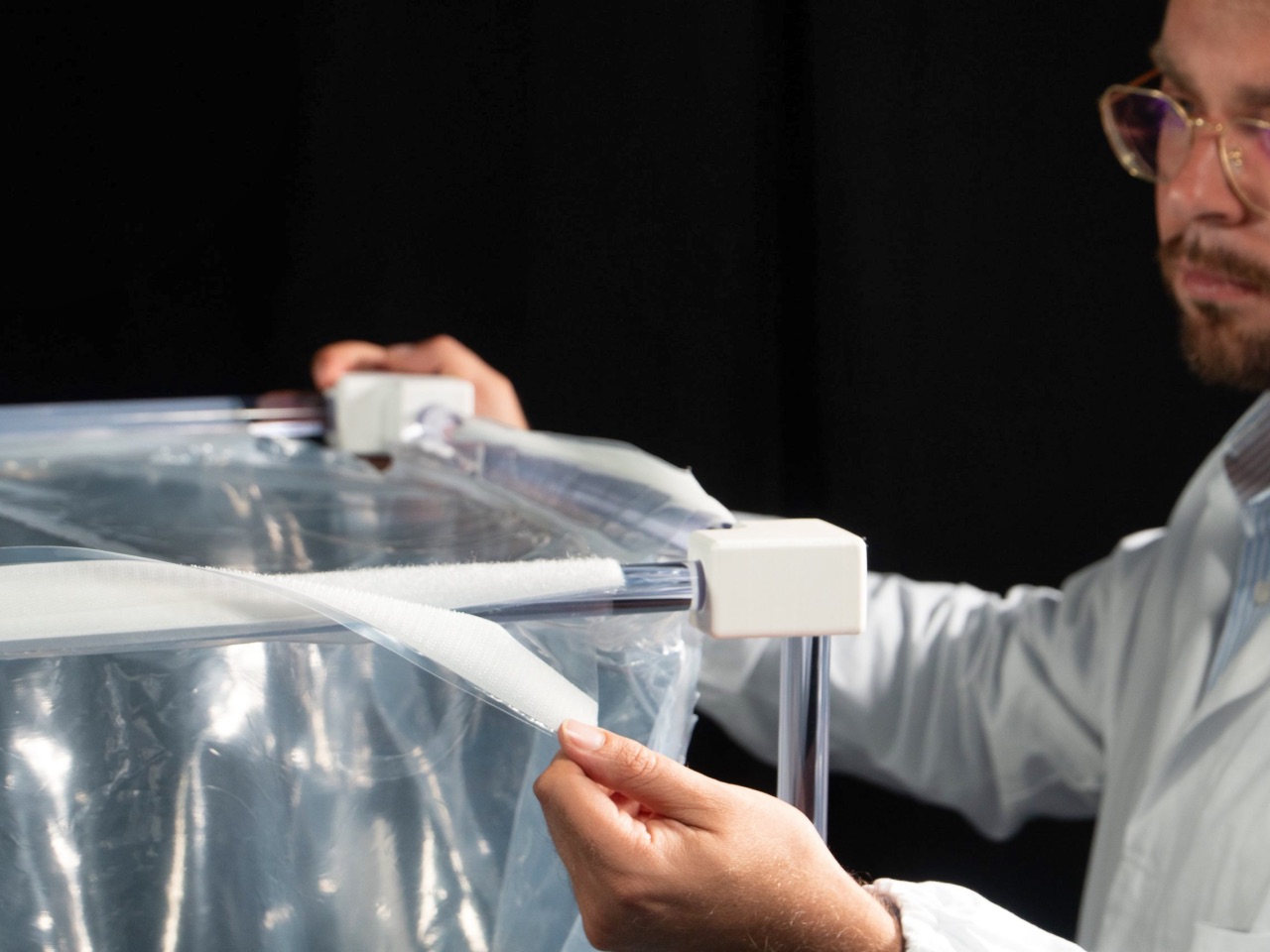

• White Velcro loop for quick assembly.
• 270 mm bag-in sleeve welded on one side (other diameters available on request: 200 mm and 350 mm). Standard length: 1 m (other sizes available on request).
• Bag-in sleeves welded on the opposite side, with a zip at the end and at the insertion point into the chamber to form a cylindrical pass box.
• Particulate filter on top.
