High Shear Granulator PVAC 10 - 60

The Diosna laboratory mixers P/VAC 10 - 60 are flexible laboratory/pilot scale high shear granulators and granulator vacuum dryers (one pot processor). The machines can be equipped with 10 & 60 liter high shear granulator bowls or 20 & 50 liter vacuum dryer bowls. Different bowls can be added at a later stage. Additionally, a machine initially designed as a high shear granulator can also be extended later to incorporate vacuum drying.

The vacuum drying bowls are of cylindrical design and equipped with gas-stripping nozzles, the cover is operated pneumatically. One of the main rotor tips is extended to form a scraper to prevent deposits on the bowl wall, as with the production machines. Thus easy scale-up is assured. The “through-the-wall“ setup for a technical zone is included as standard for vacuum drying, as the vacuum pump and heating/cooling device are arranged for set up in a technical area.

  • Moveable compact machine with integrated control,
  • Mixing/Granulating: Interchangeable bowls 10 l, 25 l, 60 l,
  • Vacuum/Gas Stripping (drying): 20 l and 50 l,
  • Easy bowl changing,
  • The drives, outlet and shaft seals remain on the machine when changing the bowls,
  • Air purge shaft seals in WIP version (wash-in-place),
  • Outlet housing can be opened for cleaning and inspection,
  • PLC with operating terminal,
  • Current and power measurement for granulation end point power with different measuring ranges.

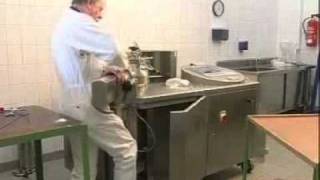

The Diosna laboratory mixer P / VAC 10-60 is designed as a flexible laboratory machine. It can be 10 -, 25 - and 60 Misch-/Granulierbehälter l or 20 - and 50 l vacuum drying tank to be installed. When swapping tanks remain the spout, the chopper with the mixer shaft seal and the seal on the machine base. Changed, the container with the lid and the mixing and chopper.
